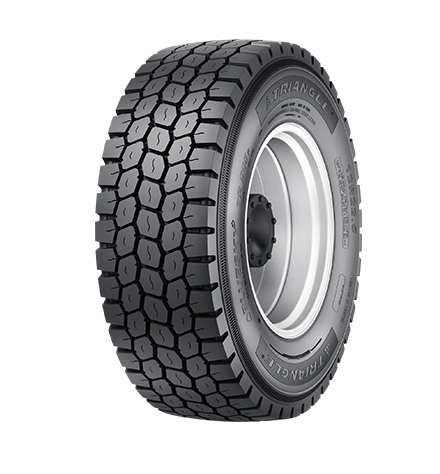

TRD05
Feature:
Non-Directional Drive tire for regional application
Non-Directional Drive tire for regional application
| Size | LI/SS | PR | Rim size | Rim allowance |
Inflated Section width mm |
Overall diameter mm |
Radius under load mm |
Load capacity kg/lbs | IP | OTD mm |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | kpa | Psi | |||||||||
| 11R22.5 | 144/142M | 14 | 8.25 | 7.5 | 279 | 1054 | 491 | 2800/6175 | 2650/5840 | 720 | 105 | 22 |
| 11R22.5 | 146/143M | 16 | 8.25 | 7.5 | 279 | 1054 | 491 | 3000/6610 | 2725/6005 | 830 | 120 | 22 |
| 12R22.5 | 150/147L | 16 | 9 | 8.25 | 300 | 1085 | 504 | 3350/7390 | 3075/6780 | 830 | 120 | 23 |
| 12R22.5 | 152/149K | 18 | 9 | 8.25 | 300 | 1085 | 504 | 3550/7830 | 3250/7160 | 930 | 135 | 23 |
| 11R24.5 | 146/143M | 14 | 8.25 | 7.5 | 279 | 1104 | 516 | 3000/6610 | 2725/6005 | 720 | 105 | 22 |
| 11R24.5 | 149/146M | 16 | 8.25 | 7.5 | 279 | 1104 | 516 | 3250/7160 | 3000/6610 | 830 | 120 | 22 |
| 295/75R22.5 | 144/141M | 14 | 9 | 8.25 | 298 | 1014 | 474 | 2800/6175 | 2575/5675 | 760 | 110 | 22 |
| 285/75R24.5 | 144/141M | 14 | 8.25 | — | 283 | 1050 | 493 | 2800/6175 | 2575/5675 | 760 | 110 | 22 |
| 255/70R22.5 | 140/137L | 16 | 7.5 | 8.25 | 255 | 930 | 435 | 2500/5510 | 2300/5070 | 830 | 120 | 18 |
| 275/70R22.5 | 148/145L | 16 | 8.25 | 9 | 276 | 958 | 446 | 3150/6940 | 2900/6395 | 860 | 125 | 22.5 |
| 275/70R22.5 | 152/148K | 18 | 8.25 | 9 | 276 | 958 | 446 | 3550/7830 | 3150/6940 | 930 | 135 | 22.5 |
| Size | LI/SS | PR | Rim size | Rim allowance |
Inflated Section width mm |
Overall diameter mm |
Radius under load mm |
Load capacity kg/lbs | IP | OTD mm |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | kpa | Psi | |||||||||
| 12R22.5 | 150/147K | 16 | 9 | 8.25 | 300 | 1085 | 504 | 3350/7390 | 3075/6780 | 830 | 120 | 23 |
| 12R22.5 | 152/149K | 18 | 9 | 8.25 | 300 | 1085 | 504 | 3550/7830 | 3250/7160 | 930 | 135 | 23 |
